Unbaled and baled waste: plastic bottles, plastic films, leather, fabrics, textiles, sponge and cardboard.
Industrial solid waste and waste from production.
Alternative energy production.
Preliminary treatment of RDF (refuse derived fuel), SRF (solid recovered fuel) and TDF (tire derived fuel).
Fine treatment of MSW (municipal solid waste), urban waste, sorted trash and garbage.
Pressed bales of scrap
Plastic waste and plastic rolls or in bales (e.g. PET bottles, PP bags, plastic films and compressed plastics)
End-of-life car and truck tires

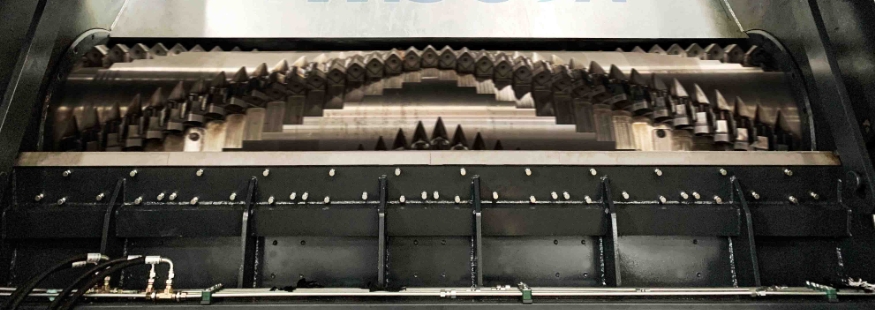

Rotor:
V-shape cutting blades, ensuring maximum cuts per revolution.
Enlarged blades can be turned for dual use and replacement.
Diameter enlarges for torsion and shock resistance.
Swing Arm:
Swing arm runs in curve.
Curve hopper allows materials to enter easily.
Works in conjunction with workload and material characteristics.

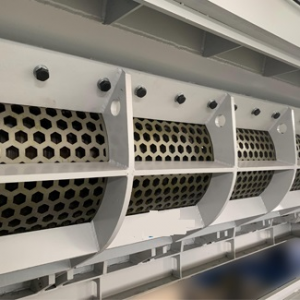

Screen:
Hydraulically actuated screen cradle.
Customizable screen opening size from 40mm to 100mm.
Hex screen and circle screen opening avails for a better size control.
Housing:
Upward-lifted service doors grant access to the front and rear.
All pipelines are well-routed in waste crusher.
Machine body is a thick-walled metal construction.
High-speed shredding.
In case of overload and shock, a torque-militing clutch disengageas to protect drive unit.

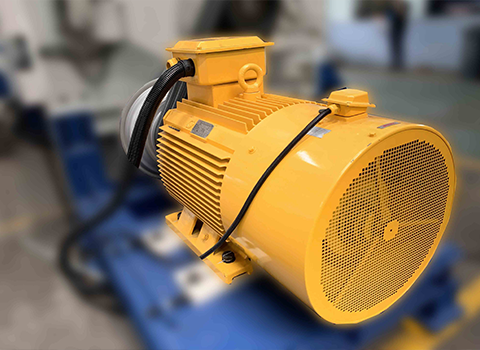

Options of one/dual motors, as well as mechanical/hydraulic/inverter drives.

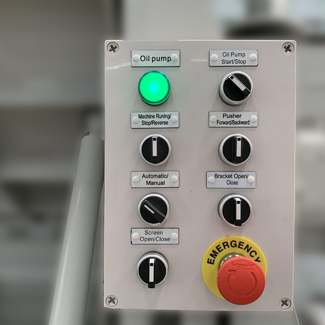

Control System:
Monitors key parameters of waste shredder.
Dynamic load balance for dual drives.
Adds-on: spark detection, dust vaccum, and water-cooling
| Model |
PTSW1500 |
PTSW2000 |
| Dimension(L*W*H)mm |
2230*3660*2970 |
2230*3710*2970 |
| Hopper opening(L*H)mm |
1360*1910 |
1360*2410 |
| Discharge height(mm) |
460 |
460 |
| Rotation diameter(mm) |
Φ465 |
Φ465 |
| Operation length(mm) |
1500 |
2000 |
| Rotation speed(RPM) |
80 |
80 |
| Swing pusher ram(mm) |
420 |
420 |
| Screen hole size(mm) |
60 |
60 |
| Rotated blades number |
88 |
95 |
| Fixed blades number |
6 |
8 |
| Motor power(kw) |
110 |
75+75 |
| Hydraulic power(kw) |
11 |
11 |
| Weight(kg) |
12500 |
15000 |
