Name: Soft plastic film/ bag washing line

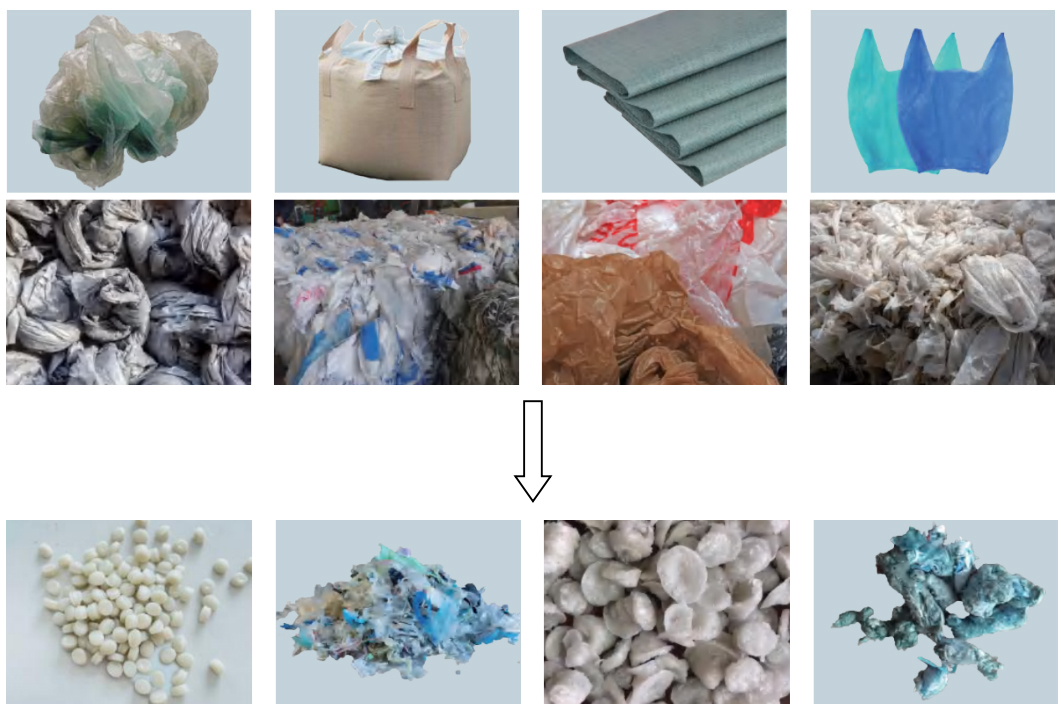

Raw materials: Agricultural film, Post-consumer film, Post-commercial and post-industrial film, jumbo bag, PP woven bag, etc.
|
Model |
Input capacity (kg/h) |
Required Area (m2) |
Installation power (KW) |
Required compressed air (m3/min) |
Average consumption (ton) |
|
PP500 |
500 |
200 |
140-225 |
0.5 |
E: 67-225kw W: 2-6.5t |
|
PP1000 |
1000 |
400 |
270-320 |
0.5 |
|
|
PP1500 |
1500 |
1000 |
500-570 |
0.8 |
|
|
PTW2000 |
2000 |
1800 |
|
1 |

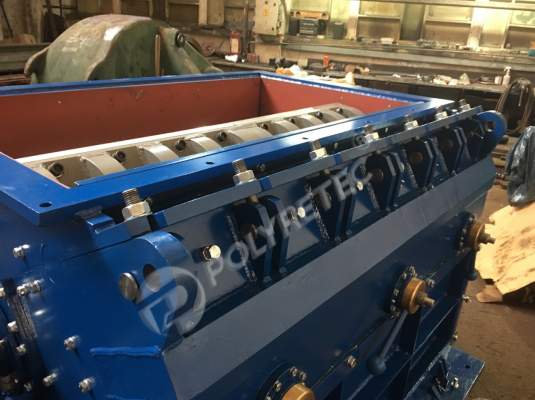

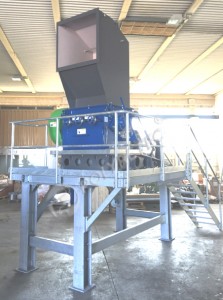

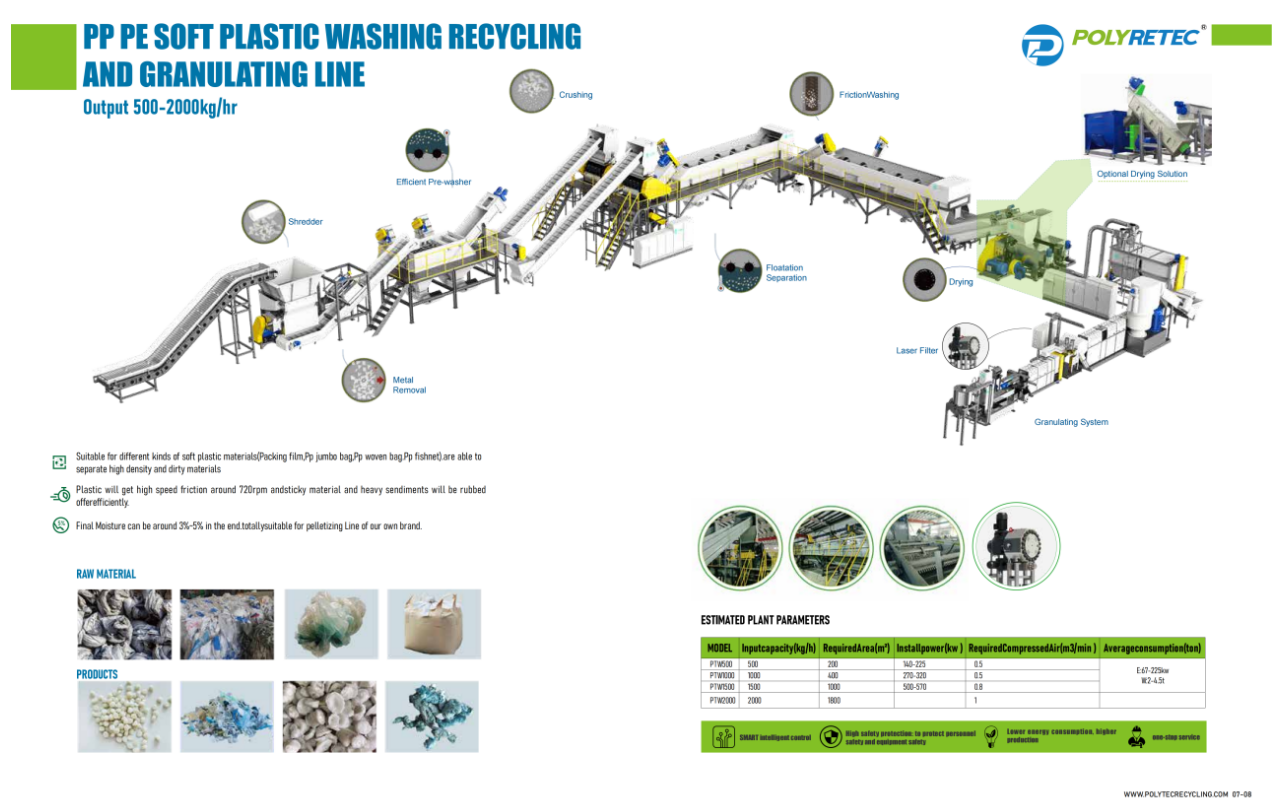

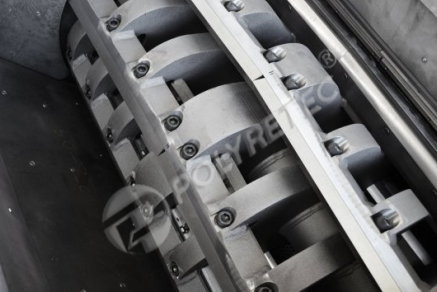

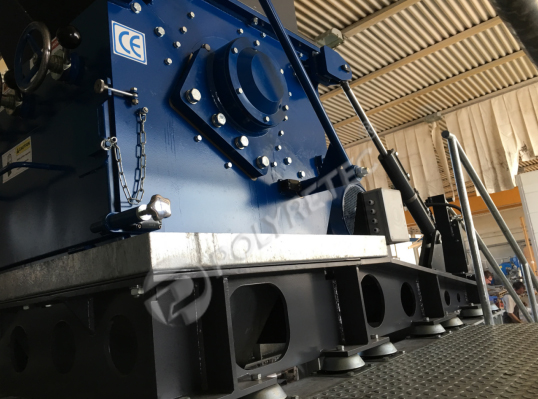

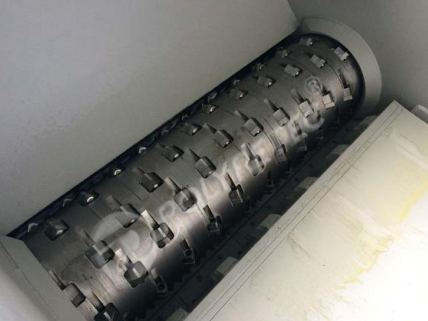

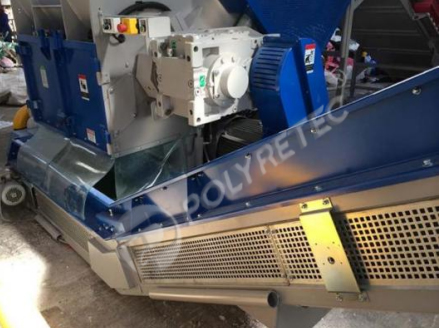

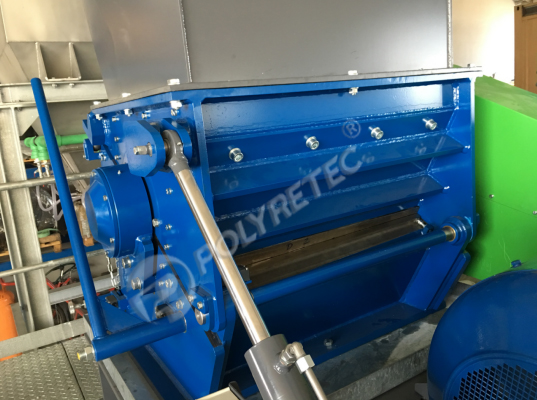

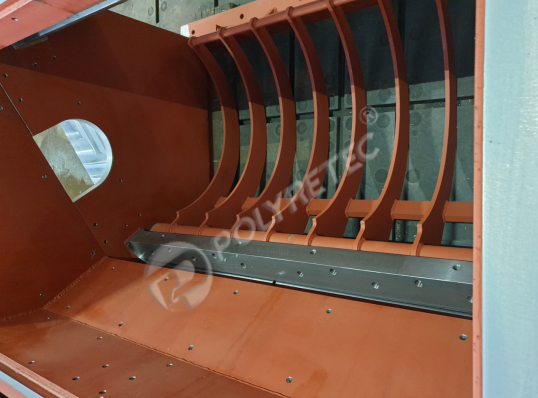

1、Shredding system is designed specifically for film materials to create a uniform particle size which is easy for washing and drying.

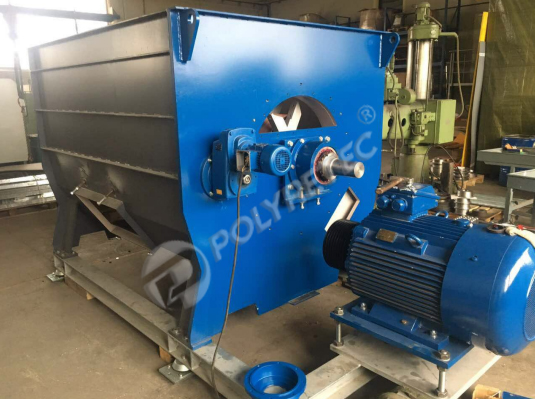

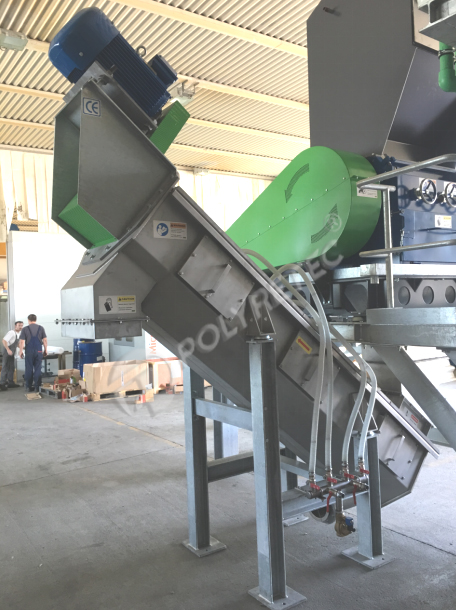

2、High speed washing system optimized according to the specific material type liberates and separates contamination from film flakes.

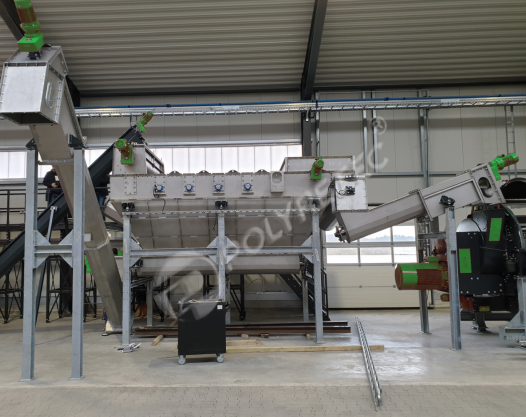

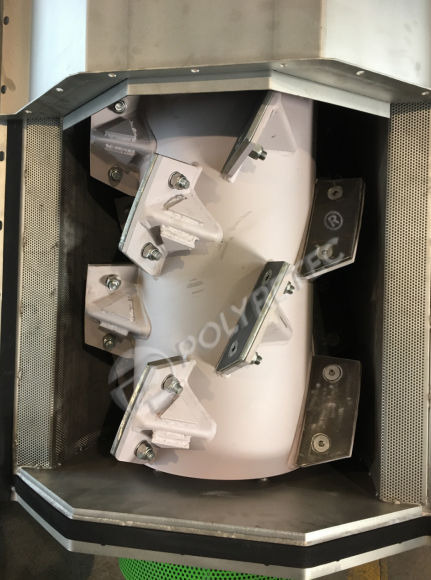

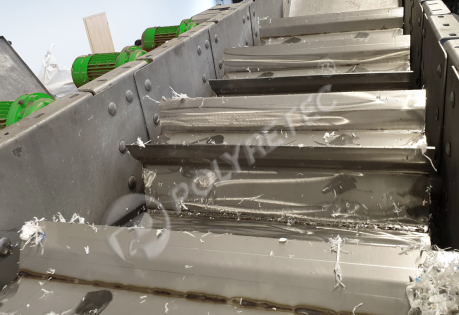

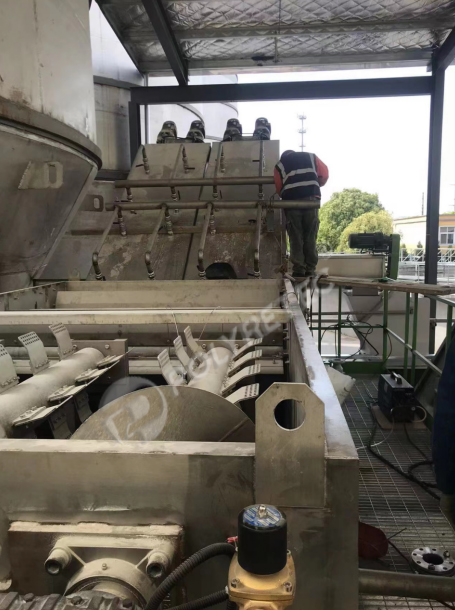

3、Under water force-washing paddles in our washing tanks maximize the washing efficiency.

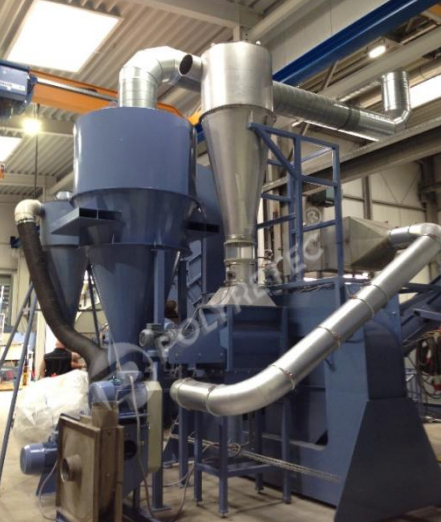

4、Mechanical (centrifugal and squeezing) and thermal drying systems control the moisture content of the finished product.
5、At < 5% moisture the material is suitable for high quality pelletizing.
6、Shredding, high speed washing and drying stages are optimized to avoid over processing which can cause material loss (fines creation).

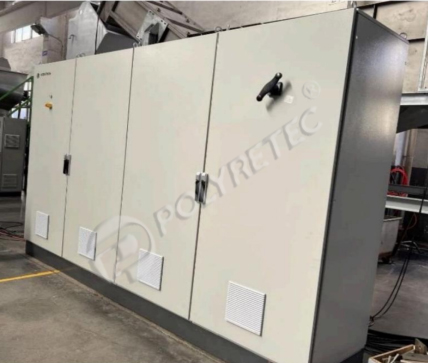

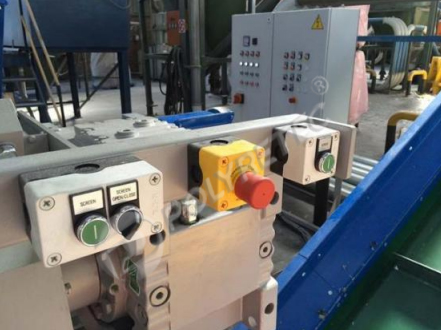

7、Intelligent system automation ensures that components actions are sequenced and monitored.
8、Integrated systems to go from field to pellet.
The film/ bag washing line equipped crushing, washing, and drying units, which allows to process different dirty levels of materials, from Agricultural film, Post-consumer film, Post-commercial, post-industrial film to jumbo bag, woven bag, etc,

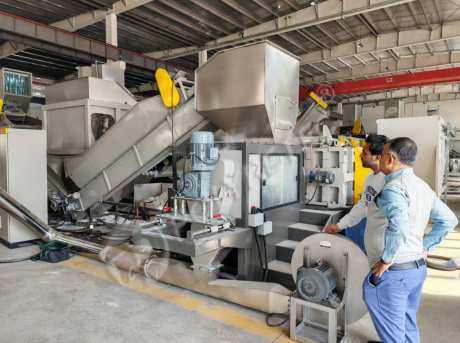

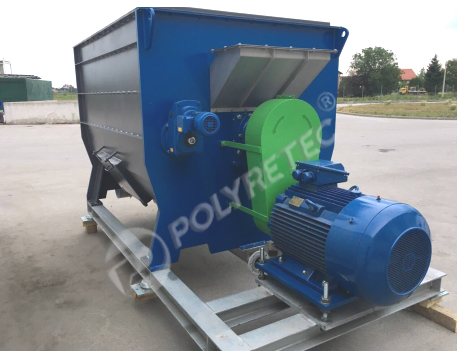

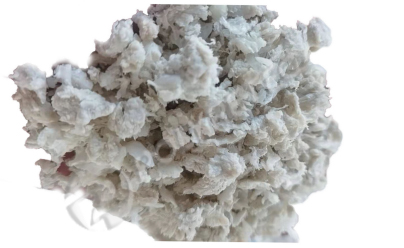

The washed films/bags are fed into a squeezer to remove the moisture. Having a plastic squeeze dryer is a must to dehydrate the washed film/ bag, reduce the volume of recycled materials, and further refine the essence of final plastic pellets.

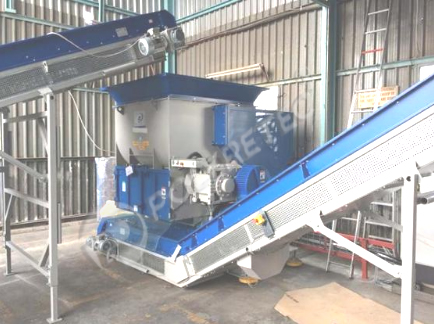

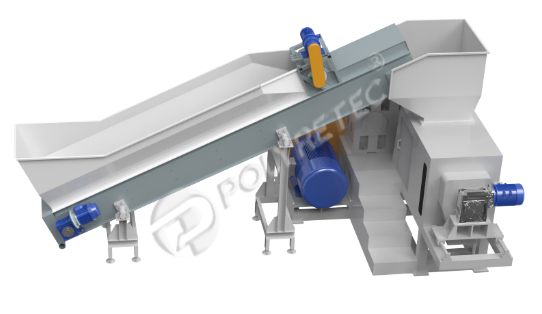

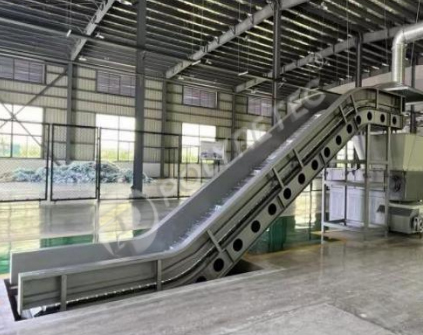

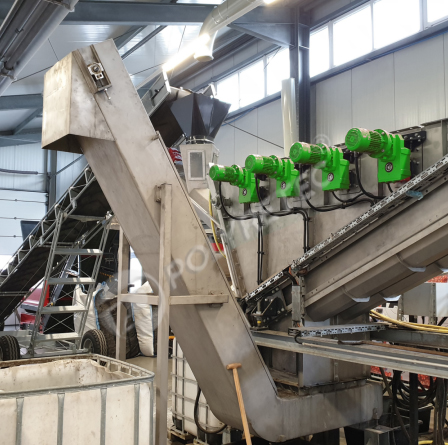

Usage:for conveying baled material into next step
1.PP PE plastic film washing machine POLYRETEC
The PTW1000 pp pe washing line and granulating machine provides customer with a complete recycling solution.All process are fully automated and labour costs are reduced .
Located in Taiwan
2.High Efficiency 500kg/h Rigid Plastic recycling system POLYRETEC
This is 500kg/h efficient LDPE rigid plastic washing solution to Ecuador from Polyretec Machinery.We equiped with crusher for battery washing effect,the final rigid flakes' water content is about 1%,which can meet the requirements of granulation line.
Located in Ecuador
3.The 1500KG/H PE Film& PP Woven Bag Recycling Washing Line
There are a lot of PE film waste and PP woven bag waste in Africa.POLYRETEC Providing the client a big capacity recycling washing solutions.So client can use the recycled PP PE plastic to product their plastic product again.
Located in Africa
4.High Efficiency 1000kg/h Rigid Plastic recycling system Polyretec
This is 1000kg/h efficient LDPE rigid plastic washing solution to Qatar from POLYRETEC Machinery.We equiped with crusher and hot friction washer with patent for battery/blue drum /oil pot washing effect,the final rigid flakes' water content is about 1%, the glue and label paper totally removed,which can meet the requirements of granulation line.
Located in shanghai
5.The PTW600 pesticide bottle recycling line POLYRETEC.
Pesticides are agricultural chemicals used to prevent pests and diseases and regulate plant growth. They are widely used in agriculture, forestry and animal husbandry production, environmental and household hygiene to prevent pests and epidemics, and industrial products to prevent mould and moths. There are many kinds of pesticides, which can be divided into insecticides, acaricides, rodenticides, nematicides, plant growth regulators, etc., according to their uses. According to the bottle material, it is divided into three categories: PET bottles, pure HDPE bottles and bottles with barrier layers. Many pesticide bottles are produced in farming every year.
Located in shandong province ,china
6.The 500KG/H LDPE LLDPE HDPE Plastic Film Washing Machine
LDPE LLDPE HDPE plastic film washing line make the clean film scraps,which can be raw material for making high quality pellets.The recycled pellets can be used to make blown film,plastic bottle,injection plastics etc.
Located in brazil
7.Post-Consumer Plastic Film Recycling Washing Line
Post-consumer plastic waste pollution is a headache problem in worldwide.POLYRETEC is devoted to developing the best solution for plastic recycling.The line consists of metal conveyor,shredder ,crusher,screw loader,floating tank,friction washer,floating tank 2,Squeezing dryer.Final moisture in 5%.
Located in japan
8.The PTW500kg/h Efficiency Washing line For LDPE Film With Stickers
We using more reasonable design-technics to help our client achieve better quality.Equiped with heavy duty shredder and beater machine,which can ensure high out put and run steadily for more than 10 years.
Located in mexico
9.Waste PP Jumbo Bag Recycling Washing line
PP woven bag especially PP jumbo bag is very hard material.It required a very strong heavy duty crusher machine as size reduction unit to ensure the high input and stable running.
Located in nantong city , jiangsu province ,china
10.PP Woven Bag Washing recycling Machine
The PP woven bag washing line can wash the woven bag scraps,It provide output capacity 300-1000kg/h.Mainly include shredding,rinsing,friction washing,squeezing dryer processes.
11.The fiber grade 1000KG/H PET Flakes Washing Machine line
One of the most famous plastic recycling company bought the PET washing line from POLYRETEC.PET recycling has a huge market.We are involved in developing our technology in PET washing and Pelletizing.
Located in Rawanda
12.The PTW500kg/h Efficiency Washing line For PP BAGS
We using more reasonable design-technics to help our client achieve better quality.Equiped with heavy duty shredder and beater machine,which can ensure high out put and run steadily for more than 10 years.
Located in Jakarta ,Indonesia
13.Soft film sorting system POLYRETEC
The PTW3000 shredding and sorting system provides customer with a complete recycling solution.All process are fully automated and labour costs are reduced.
Located in China
Why POLYTEC more suitable for your investment?
With Austrian Technology & Made in China
Use our own factories to manufacture waste plastic recycling machines(plastic washing line and pelletizing line) - better quality control
With CE certificate, can meet UL/CSA standard
Quick machine service
Intelligent machine control
Low energy consumption, high output
Equipped with a complete water treatment system
