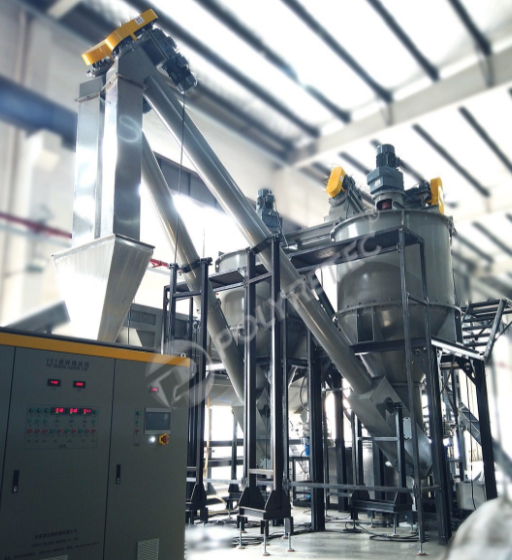

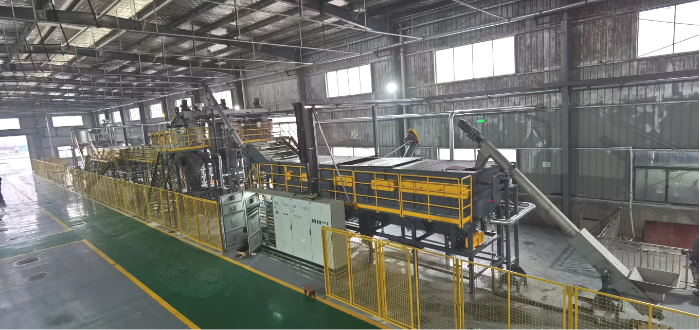

Name: PET Bottle washing line

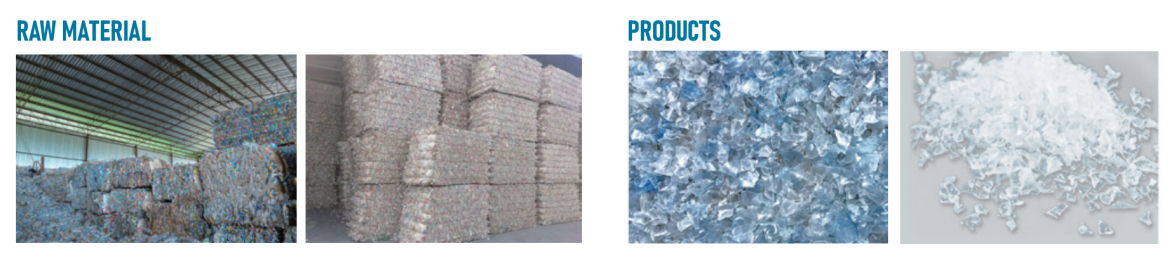

Raw materials: Beverage bottles, mineral water bottle, food bottles/jars (salad dressing, peanut butter, honey, etc.).
PET Bottle Recycling Process:

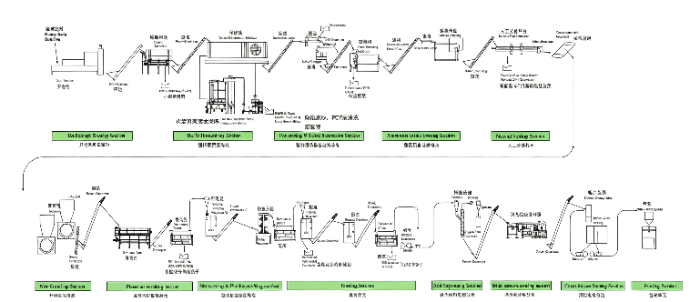

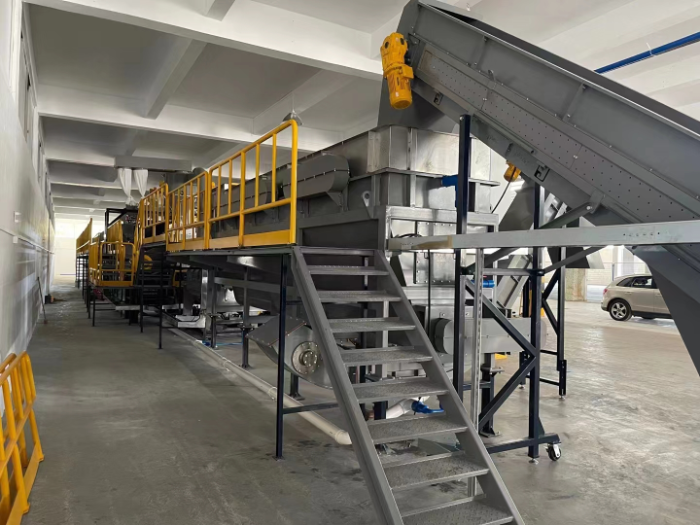

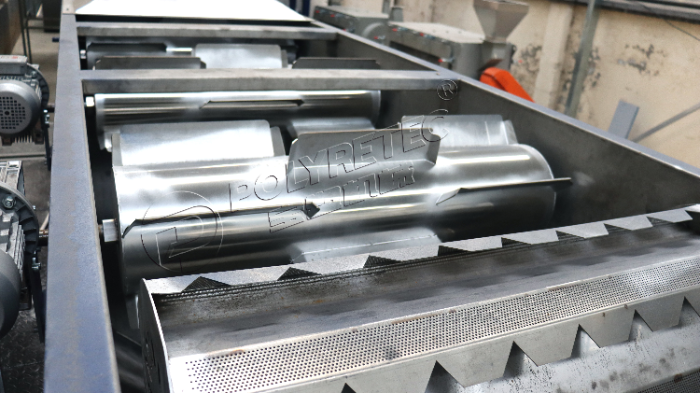

De-baling→Metal Removal-→Label Removal--→Metal Removal--→Bottle Pre-washing→Optical Bottle Sorting→Manual Sorting→Crushing→Dust Removal-→Flotation Hot washing→Friction Washing→Rinsing→Flushing
Washing→Drying→Dust Removal-→Optical Flakes Sorting→Blending→Online Inspection-→Packing
Ps.A standard sampling of food-grade/filament-grade PET bottle recycling process,equipment configuration and the process will be optimized according to raw materials

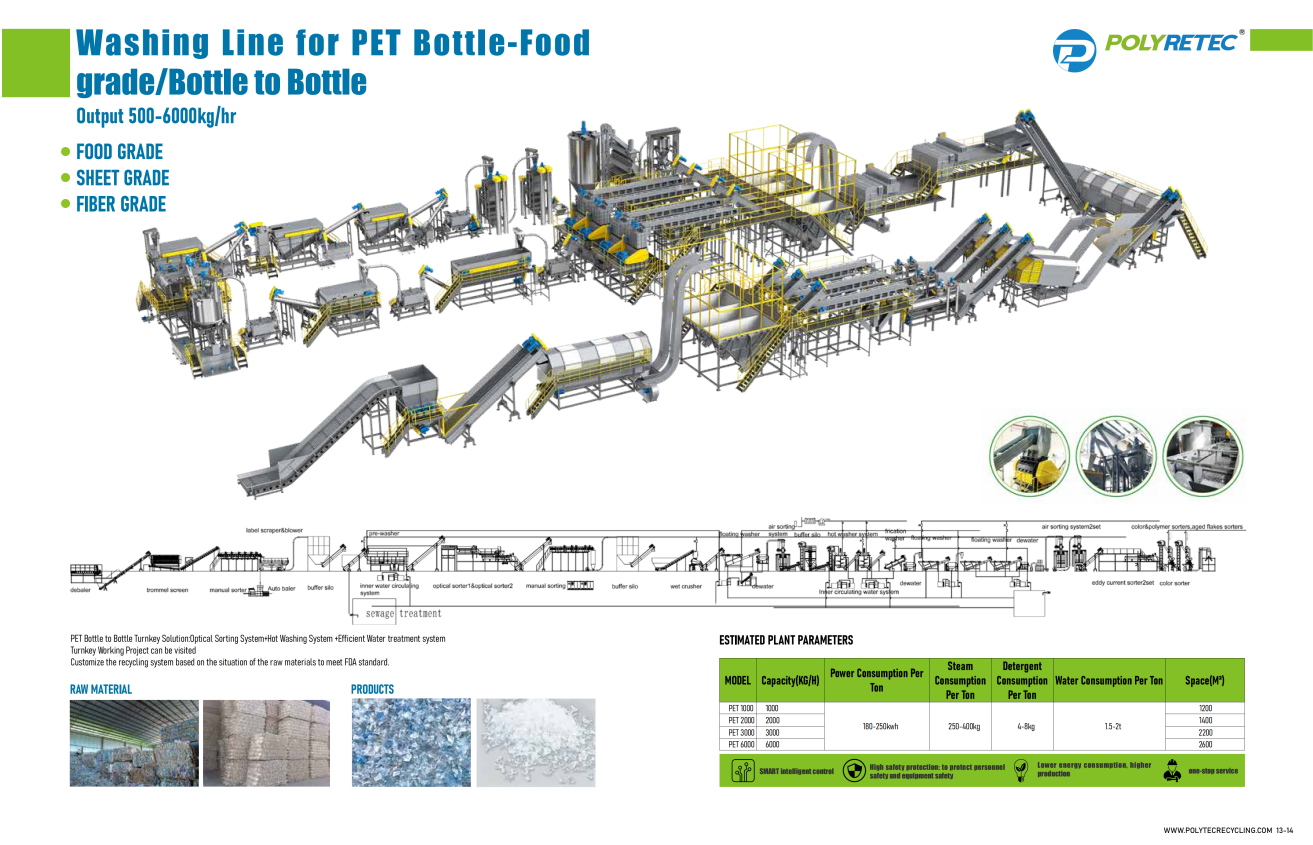

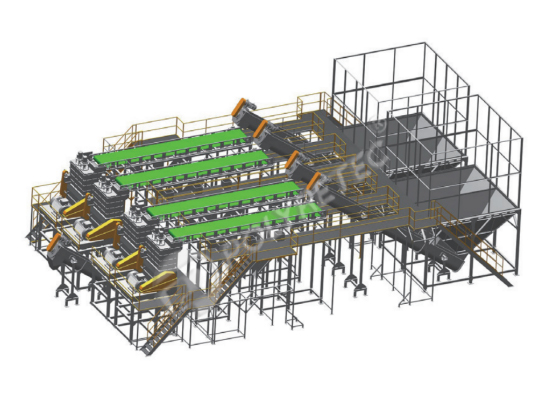

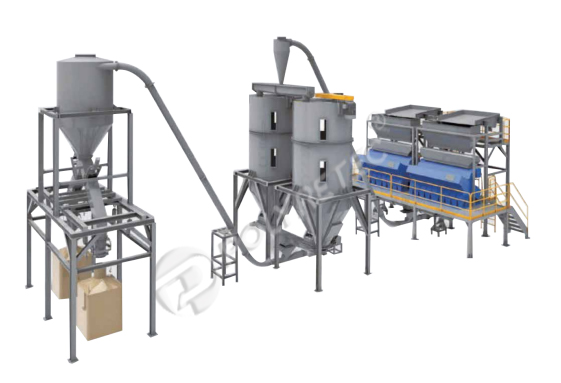

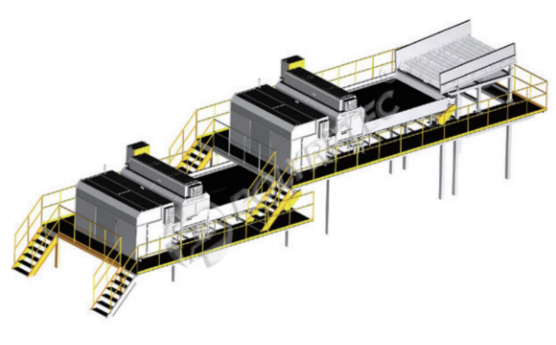

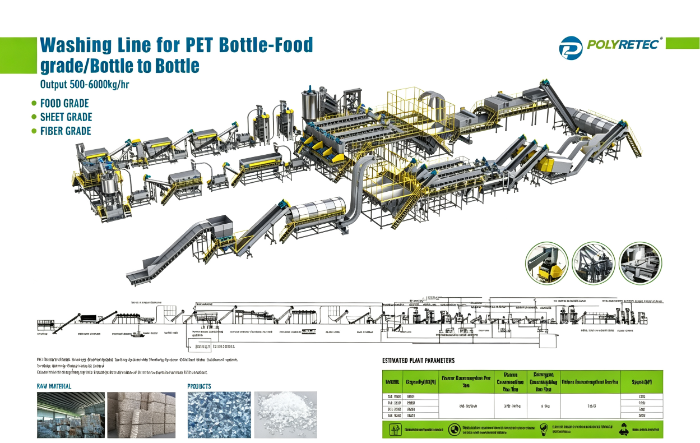

3D-LAYOUT:
PROJECT PARAMETERS:
Food Grade/Filament Grade Estimated plant parameters :
| Input capacity (kg/h) | Required area(㎡) | Install power(kw) | Required water(m³/h） | Required steam(kg/h) | Required compressor air(㎡/min) | Man power |
| 1000 | 1300 | 550 | 2 | 600 | 3 | 5 |
| 2000 | 1600 | 800 | 4 | 900 | 4.5 | 7 |
| 3000 | 2000 | 900 | 4.5 | 1300 | 6.5 | 8 |
| 6000 | 3000 | 1000 | 9 | 2300 | 12 | 11 |
＊water consumption parameters are calculated based on using wastewater reuse system.
＊PET bottle material composition and factory management level will affect actual consumption .
Food grade/Filament Grade Production consumption table-average energy consumption per ton flakes:
| Input capacity (kg/h) | Electricity consumption(KWH) | Steam(kg) | Washing detergent(kg) | Water consumption(ton) |
| 1000 | 170 | 600 | 12 | 1.5 |
| 2000 | 165 | 550 | 12 | 1.5 |
| 3000 | 160 | 500 | 12 | 1.5 |
| 6000 | 150 | 450 | 12 | 1.5 |
Food Grade/Filament Grade PET Flakes Quality Standard Reference Table:
| Moisture | ＜1% |
| Label | ＜15ppm |
| Pvc | ＜30ppm |
| Inorganic compounds | ＜10ppm |
| Glue | ＜10ppm |
| PH | 7.5±0.5 |
| PP/PE | ＜15ppm |
| Metal | ＜10ppm |
| Total impurity | ＜100ppm-250ppm |
| ＊Flake size | 12mm |
＊Flakes size can be specified by customers
1. Solutions for diversification of input PET bottle bales.
2. Automatic de-baling technology, reduces labor, a strong bale breaking ability for high-density PET botle bales
3. Effective PVC label removal.
4. Pre-washing and hot washing process to ensure the cleanliness of rPET flakes.
5. The hot washing process reduces impurities content to achieve high stable and reliable quality of rPET flakes.

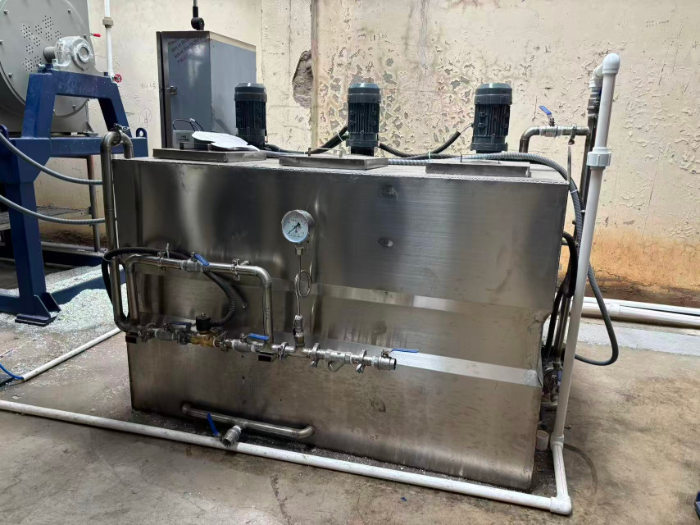

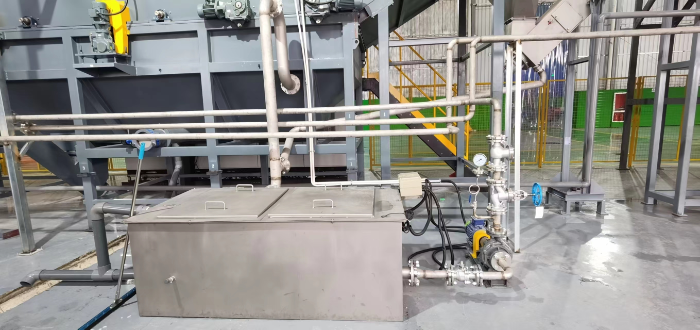

6. Completed online water recycling treatment system.

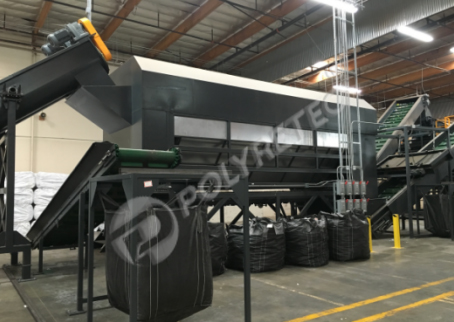

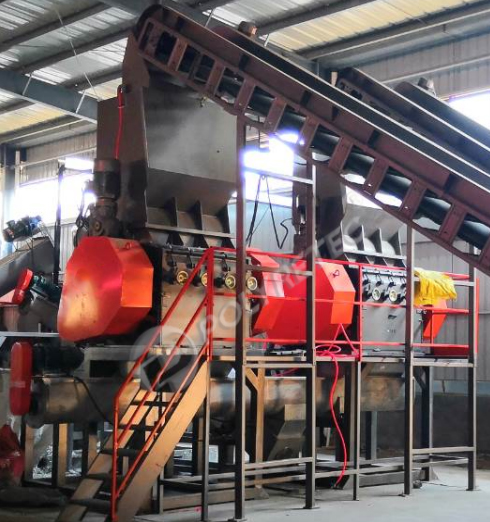

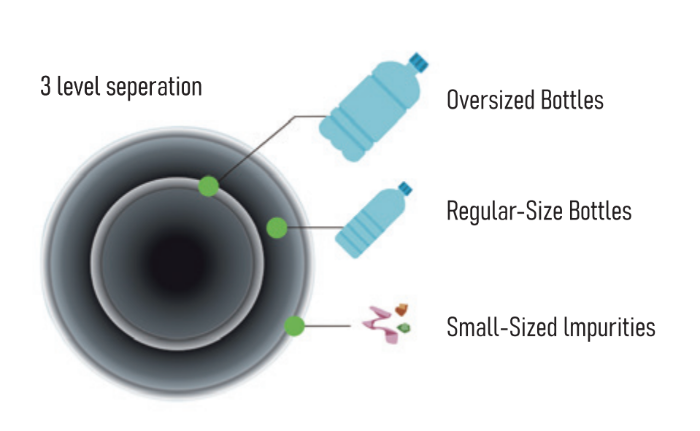

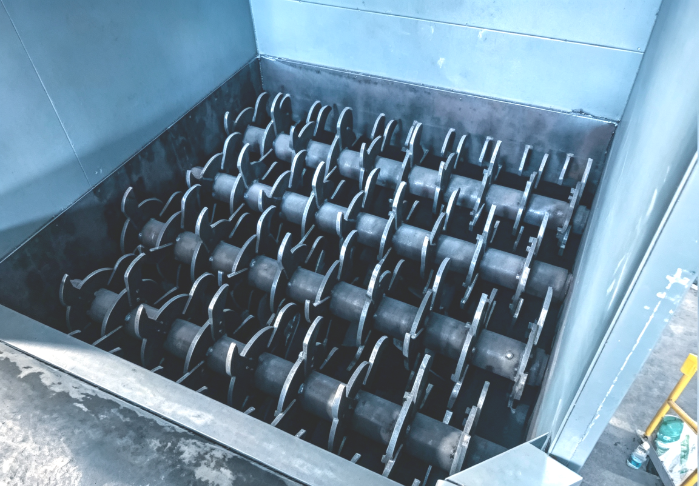

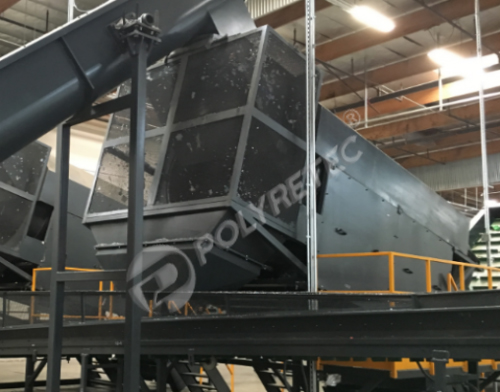

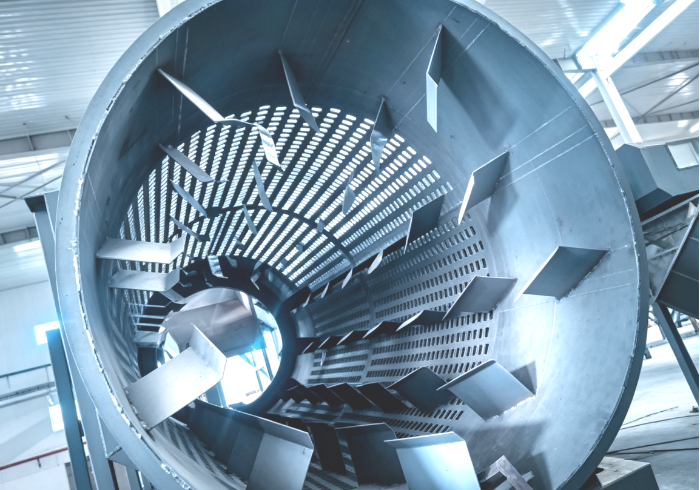

When working, a forklift is used to place the bottle bricks on the platform, manually cut and pull out the strapping iron wire, and then the forklift pushes the bottle bricks into the rubber belt conveyor for transportation, and the unpacking speed is controlled by frequency conversion and speed regulation.

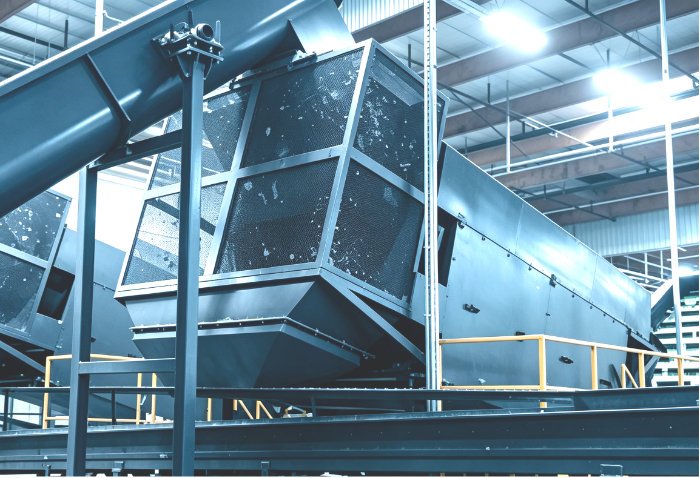

The effect is to break up the lumps, sift out small garbage and part of the bottle cap.

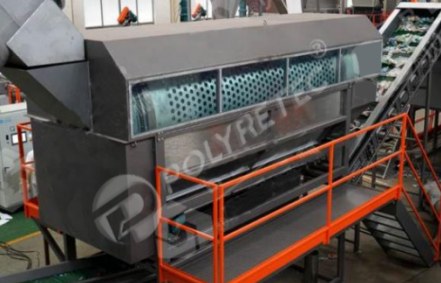

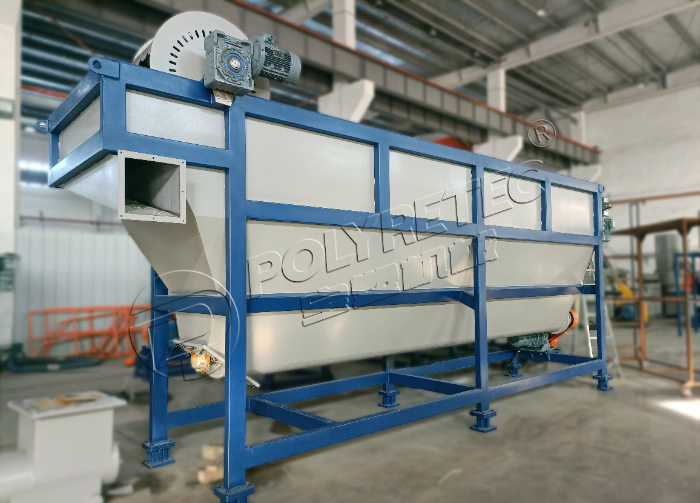

It aims to wash away the dirt and adhesive labels on the surface of bottle scraps that are delivered to the washing machine after being scattered by the unpacking machine with high-temperature agentia to and deliver the washed bottles to the next process with the double screw.

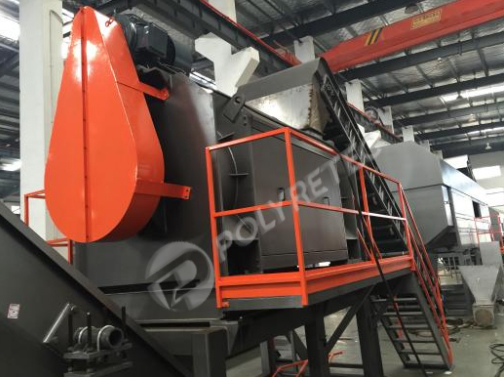

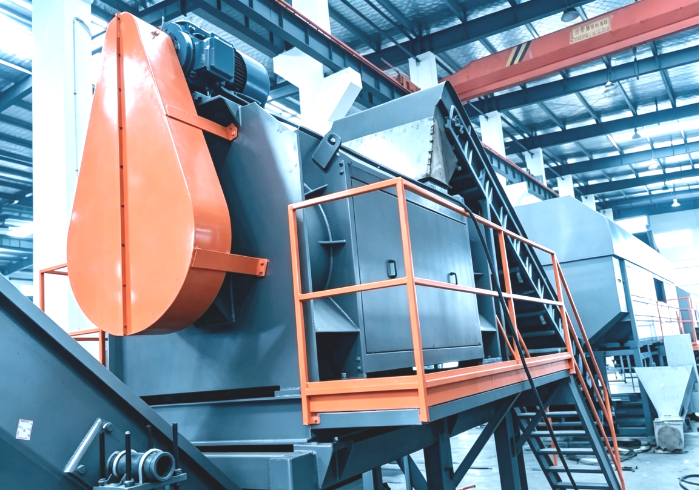

The label scrapping machine is designed to scrap the labels attached to bottles. It mainly consists of feed section, rotor drum, nail tray, pedestal, lateral plate, discharge section and transmission device.

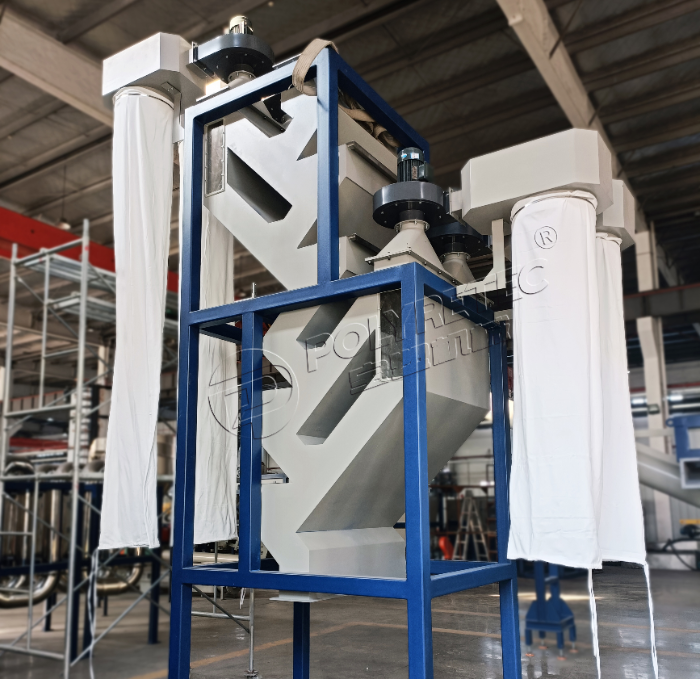

Due to the weight difference between bottles and labels, labels are separated out by the wind force of the label blowing fan that is equipped to the discharge end of the drum of the blowing machine, brought into the label screen frame and collected by the trolley or blown to the wrapping machine; while bottles are outputted from the other end and delivered to the next process by the double-screw conveyor.

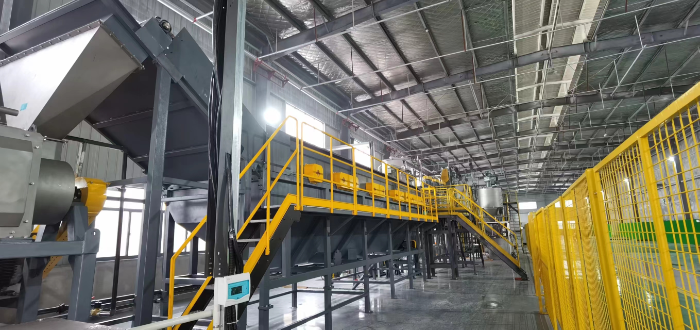

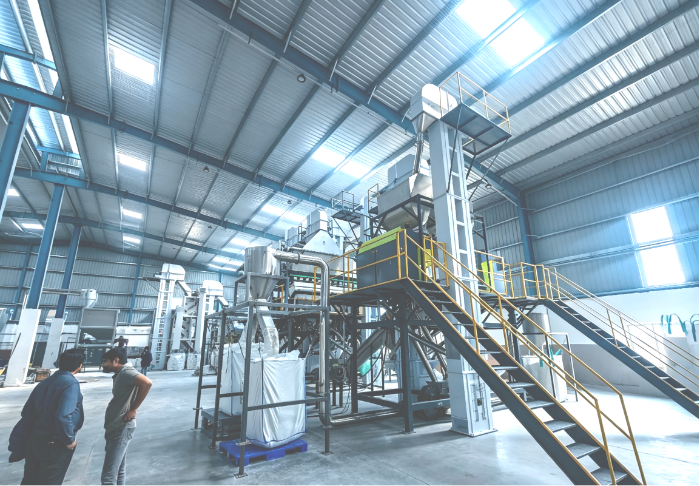

Polyretec provides optical sorting machine and integraton solution by cooperating with well-known sorting device
manufacturers across the world.On one hand,automatic opticalsorting macthine can reduce the mananement cost
and man power requirement and on the other hand guaranteeing the stablity of sorting.

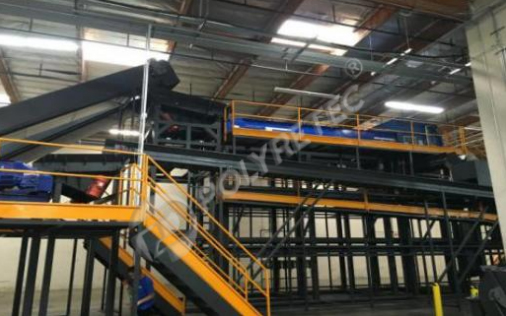

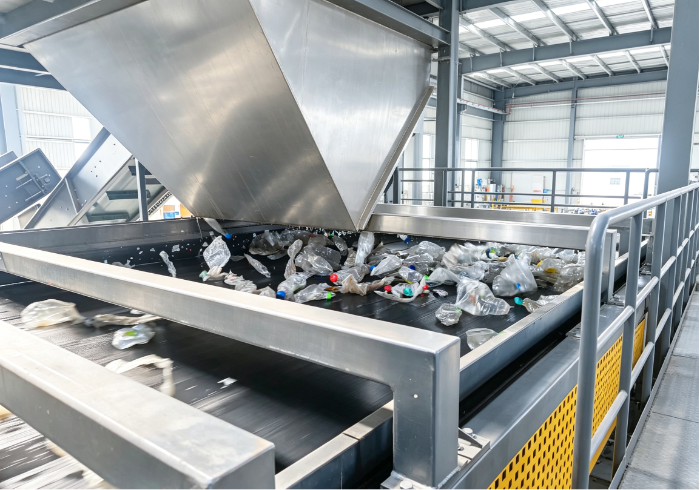

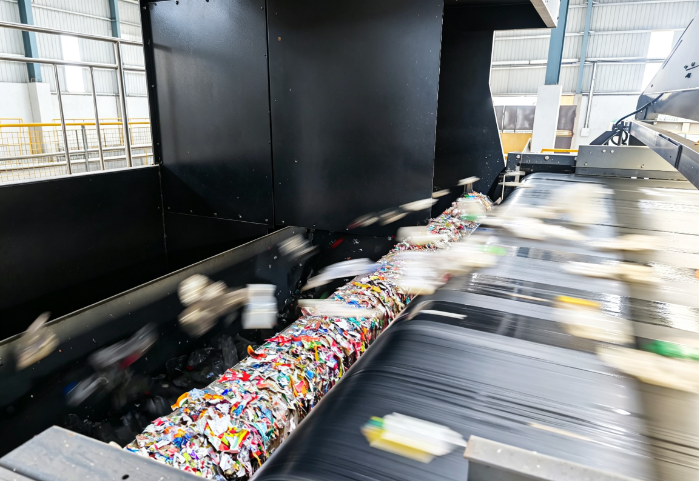

Non-PET color bottles and metals can be detected and sorted out by NIR.optical sensor optical camera and metal
detector in this section.lt provides guarantee the PET materials purity.

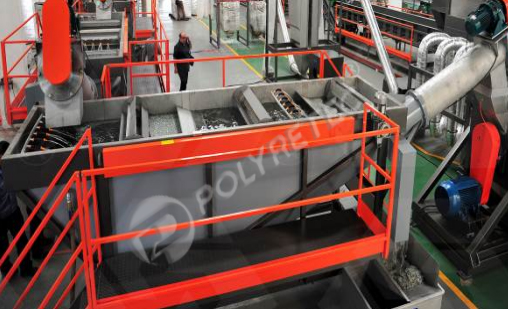

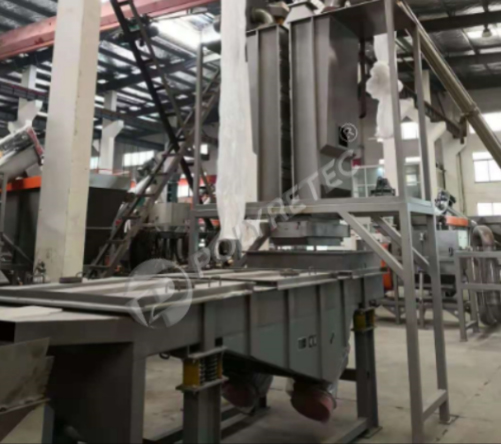

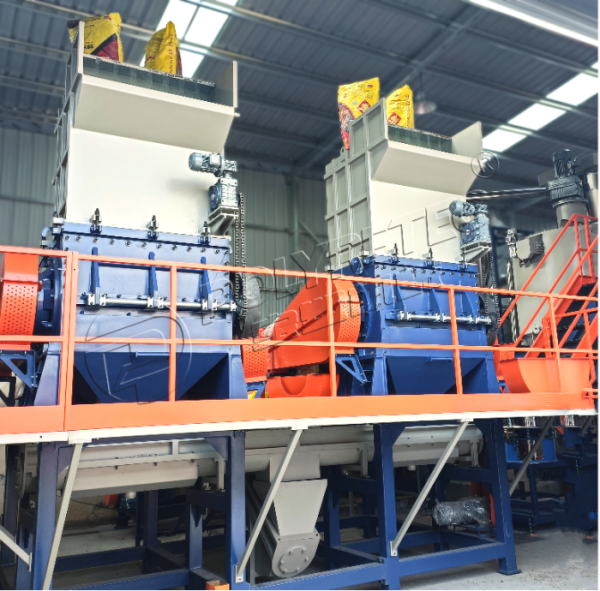

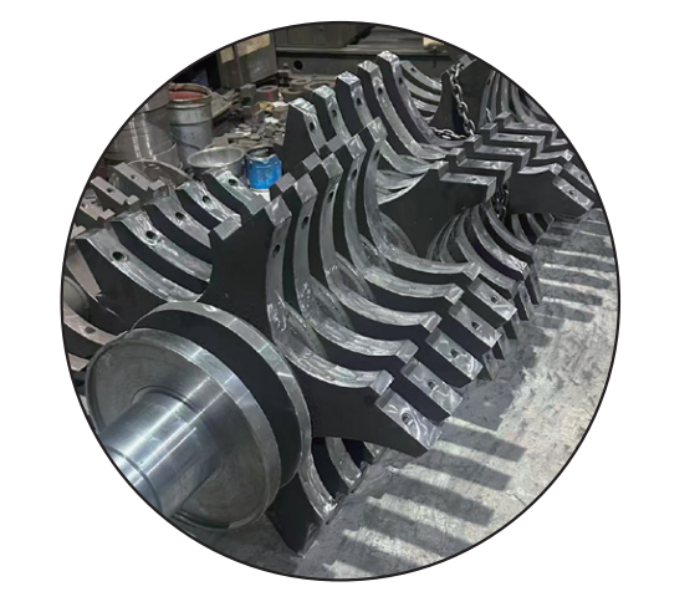

Wet grinding featured with unhindered feeding, stable output, low energy consumption, low noise, and firm structure is adopted in this production line.
Eventually semimyzing with water content of less than 5%

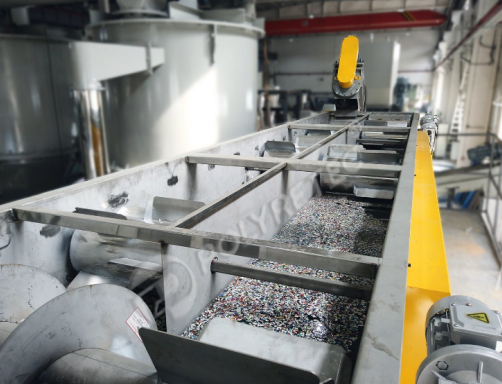

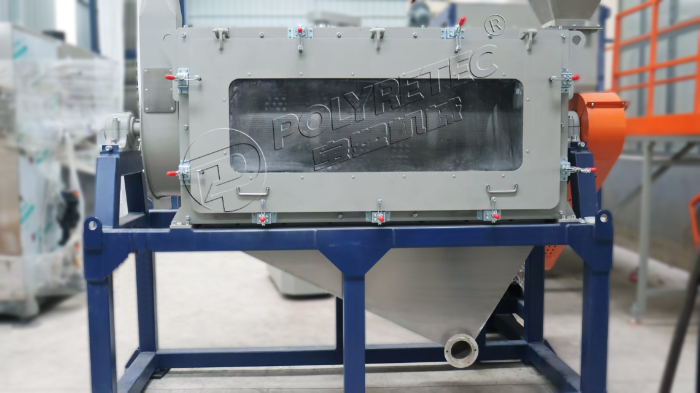

Usage: Drying and removing water.
Advantages:
>High effective drying and cleaning
>Reinforced,mild steel and high speed rotor with exchangeable padels
>Stainless steel screen hole size 2-3mm in polygon version for higher washing/drying effect
>Easy replacement of screens(segmental design)
>Housing builtin mild steel,welded construction
> Oversized,outside mountedbearings
Easy maintenance

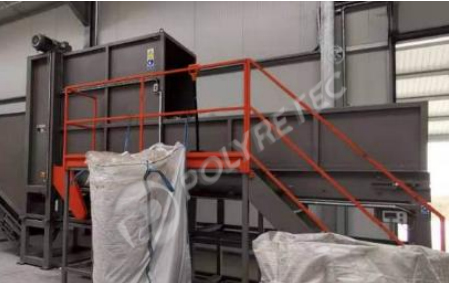

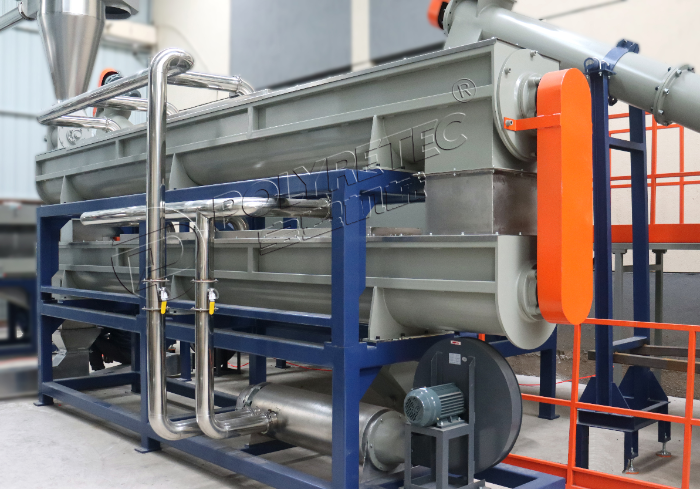

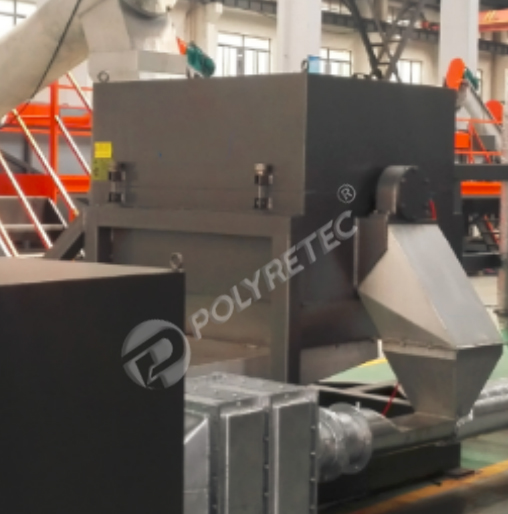

Usage: for drying flakes
For final drying of the flakes to a moisture of about 2 - 5 % by weight comprising of:
- mixing chamber for mixing the product with hot air,
- heating device
- drying spiral with about 20 m length build in compact version,
- material separating cyclone,
- temperature control device

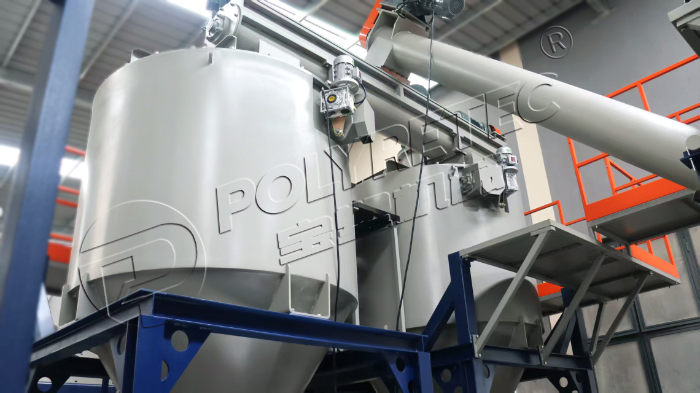

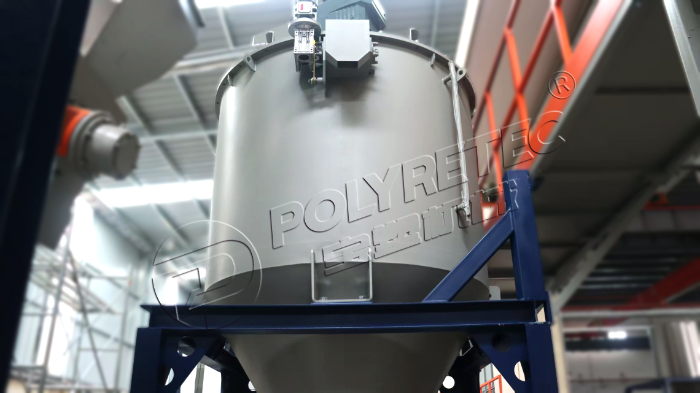

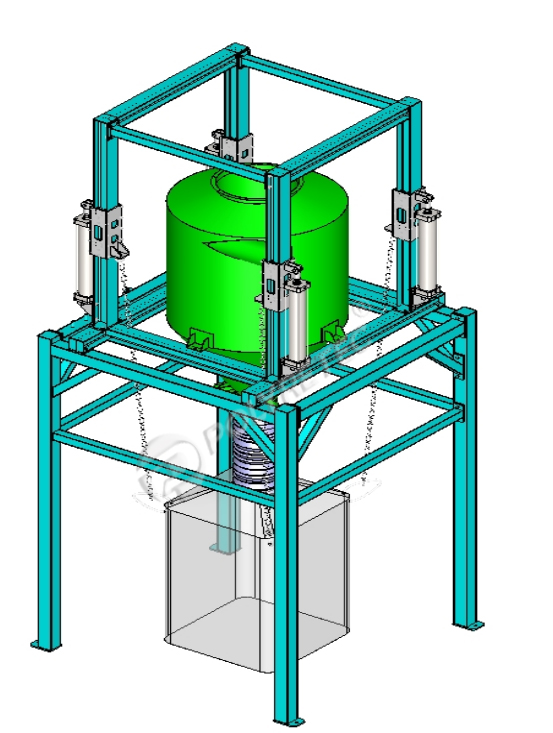

Usage :for temporary storage for flakes.
Blower power:5.5kw
Volume: 5m³
Discharging by double screw

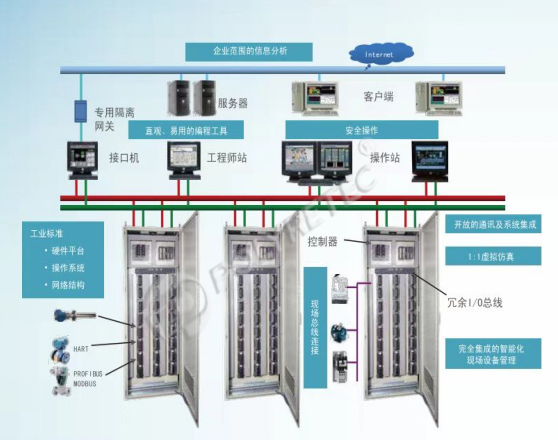

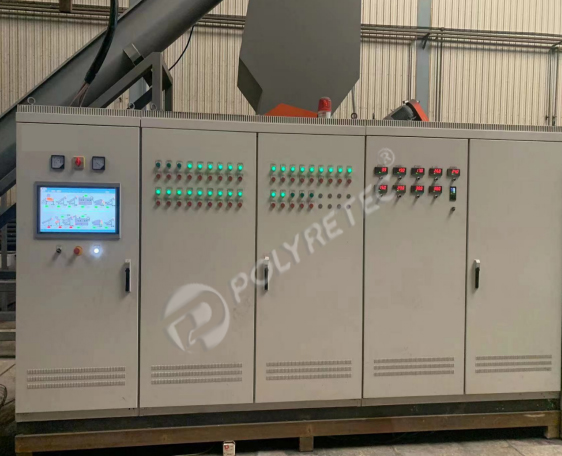

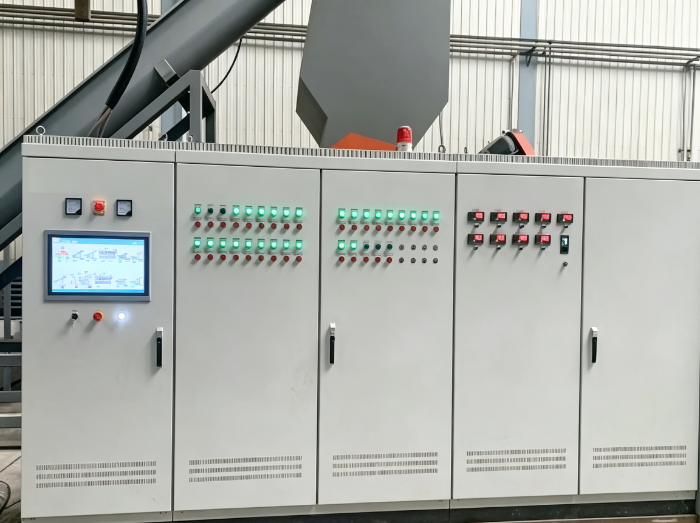

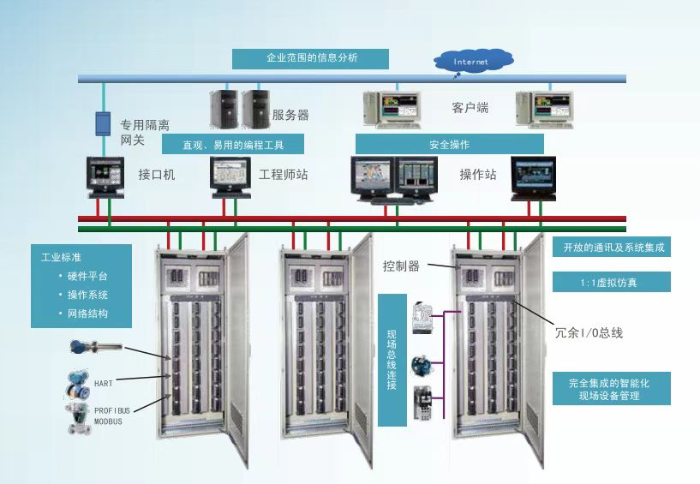

Use: To control the entire line.
Electric elements:
PLC control module :
Siemens
1.PP PE plastic film washing machine POLYRETEC
The PTW1000 pp pe washing line and granulating machine provides customer with a complete recycling solution.All process are fully automated and labour costs are reduced .
Located in Taiwan
2.High Efficiency 500kg/h Rigid Plastic recycling system POLYRETEC
This is 500kg/h efficient LDPE rigid plastic washing solution to Ecuador from Polyretec Machinery.We equiped with crusher for battery washing effect,the final rigid flakes' water content is about 1%,which can meet the requirements of granulation line.
Located in Ecuador

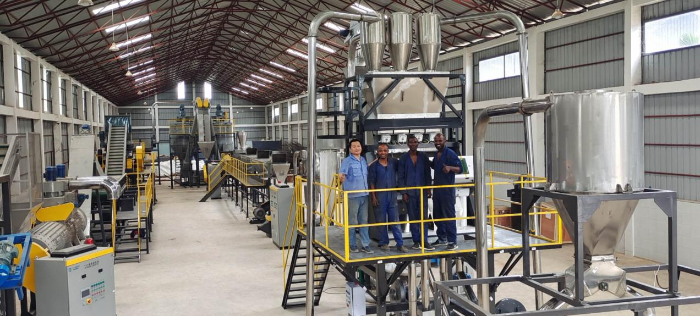

3.The 1500KG/H PE Film& PP Woven Bag Recycling Washing Line
There are a lot of PE film waste and PP woven bag waste in Africa.POLYRETEC Providing the client a big capacity recycling washing solutions.So client can use the recycled PP PE plastic to product their plastic product again.
Located in Africa
4.High Efficiency 1000kg/h Rigid Plastic recycling system Polyretec
This is 1000kg/h efficient LDPE rigid plastic washing solution to Qatar from POLYRETEC Machinery.We equiped with crusher and hot friction washer with patent for battery/blue drum /oil pot washing effect,the final rigid flakes' water content is about 1%, the glue and label paper totally removed,which can meet the requirements of granulation line.
Located in shanghai
5.The PTW600 pesticide bottle recycling line POLYRETEC.
Pesticides are agricultural chemicals used to prevent pests and diseases and regulate plant growth. They are widely used in agriculture, forestry and animal husbandry production, environmental and household hygiene to prevent pests and epidemics, and industrial products to prevent mould and moths. There are many kinds of pesticides, which can be divided into insecticides, acaricides, rodenticides, nematicides, plant growth regulators, etc., according to their uses. According to the bottle material, it is divided into three categories: PET bottles, pure HDPE bottles and bottles with barrier layers. Many pesticide bottles are produced in farming every year.
Located in shandong province ,china
6.The 500KG/H LDPE LLDPE HDPE Plastic Film Washing Machine
LDPE LLDPE HDPE plastic film washing line make the clean film scraps,which can be raw material for making high quality pellets.The recycled pellets can be used to make blown film,plastic bottle,injection plastics etc.
Located in brazil
7.Post-Consumer Plastic Film Recycling Washing Line
Post-consumer plastic waste pollution is a headache problem in worldwide.POLYRETEC is devoted to developing the best solution for plastic recycling.The line consists of metal conveyor,shredder ,crusher,screw loader,floating tank,friction washer,floating tank 2,Squeezing dryer.Final moisture in 5%.
Located in japan
8.The PTW500kg/h Efficiency Washing line For LDPE Film With Stickers
We using more reasonable design-technics to help our client achieve better quality.Equiped with heavy duty shredder and beater machine,which can ensure high out put and run steadily for more than 10 years.
Located in mexico
9.Waste PP Jumbo Bag Recycling Washing line
PP woven bag especially PP jumbo bag is very hard material.It required a very strong heavy duty crusher machine as size reduction unit to ensure the high input and stable running.
Located in nantong city , jiangsu province ,china
10.PP Woven Bag Washing recycling Machine
The PP woven bag washing line can wash the woven bag scraps,It provide output capacity 300-1000kg/h.Mainly include shredding,rinsing,friction washing,squeezing dryer processes.
11.The fiber grade 1000KG/H PET Flakes Washing Machine line
One of the most famous plastic recycling company bought the PET washing line from POLYRETEC.PET recycling has a huge market.We are involved in developing our technology in PET washing and Pelletizing.
Located in Rawanda
12.The PTW500kg/h Efficiency Washing line For PP BAGS
We using more reasonable design-technics to help our client achieve better quality.Equiped with heavy duty shredder and beater machine,which can ensure high out put and run steadily for more than 10 years.
Located in Jakarta ,Indonesia
13.Soft film sorting system POLYRETEC
The PTW3000 shredding and sorting system provides customer with a complete recycling solution.All process are fully automated and labour costs are reduced.
Located in China
