Unique Structure with High Output
High yield and fine chip size
High-speed One-shaft shredding
Multiple mechanical and electrical protection
Excellent performance in RDF production

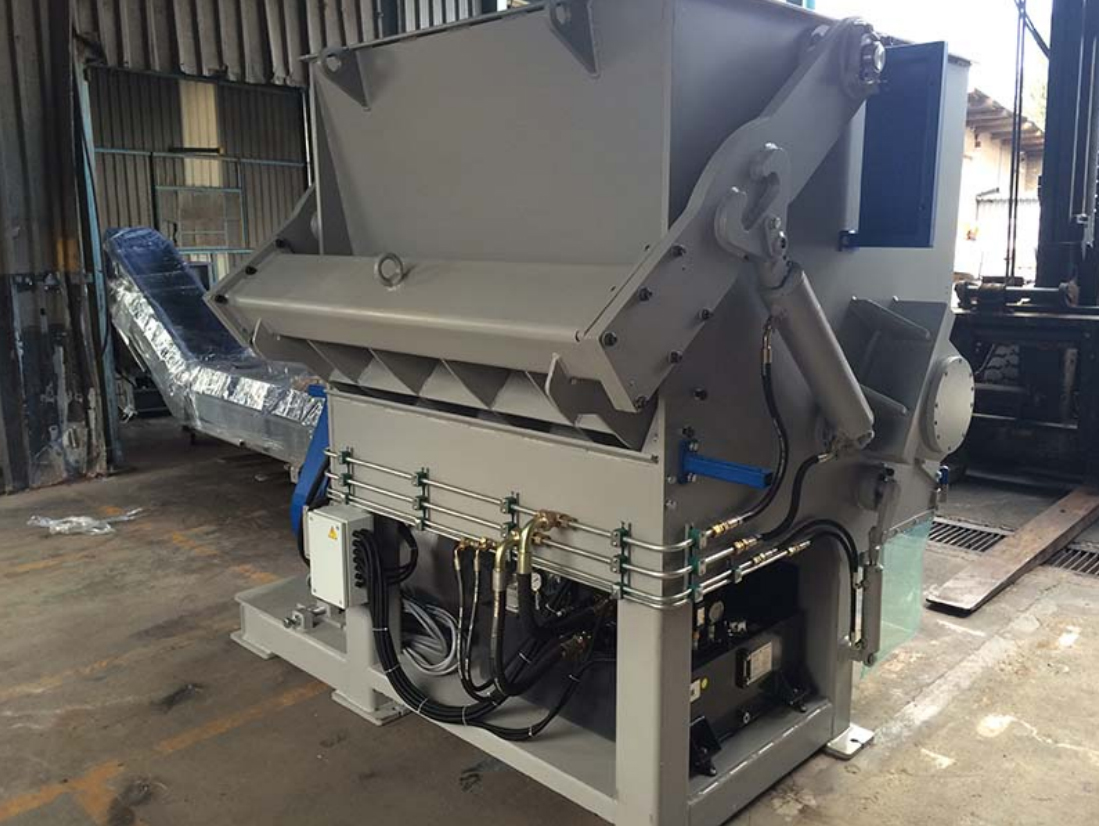

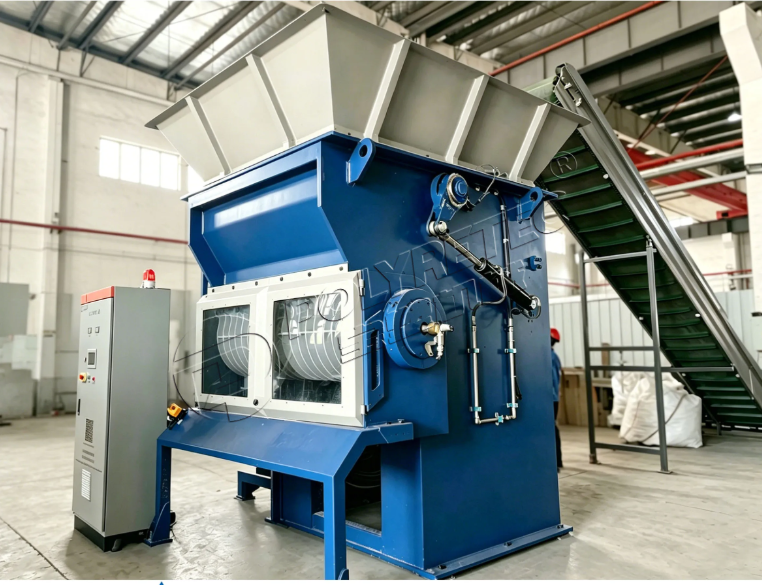

This heavy-duty industrial waste shredder is infused with Polytec’s most reliable shredding technologies. With unique designs to rotor, chamber and control system, you are sure to enjoy high capacity and fine size control.
For downsizing commercial and industrial waste, this solid waste shredder produces up to 15 tons per hour with a particle size of 40-60mm. There is only one purpose of Waste Shredder Applications.
Unbaled and baled waste: plastic bottles, plastic films, leather, fabrics, textiles, sponge and cardboard.
Industrial solid waste and waste from production.
Alternative energy production.
Preliminary treatment of RDF (refuse derived fuel), SRF (solid recovered fuel) and TDF (tire derived fuel).
Fine treatment of MSW (municipal solid waste), urban waste, sorted trash and garbage.

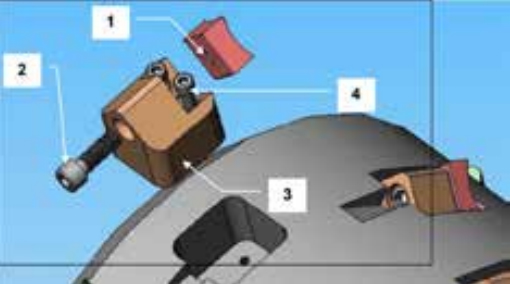

(1) Rotor knife
(2) Knife mounting screw
(3) Knife holder
(4) Knife holder mounting screws

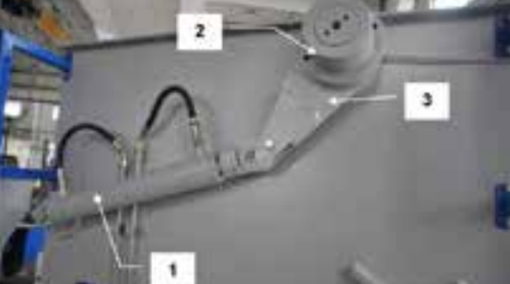

(1) Hydraulic cylinder
(2) Bearing with clamping
(3) Arm

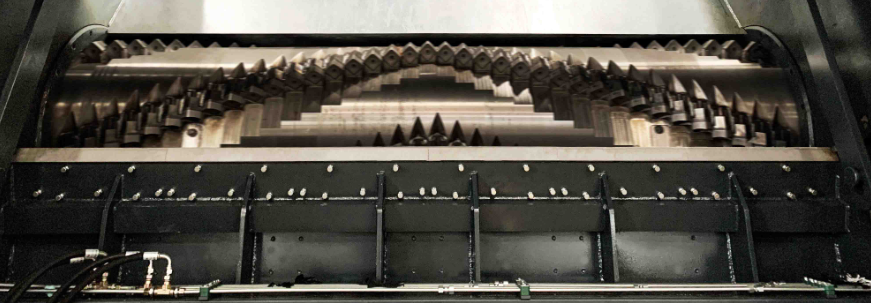

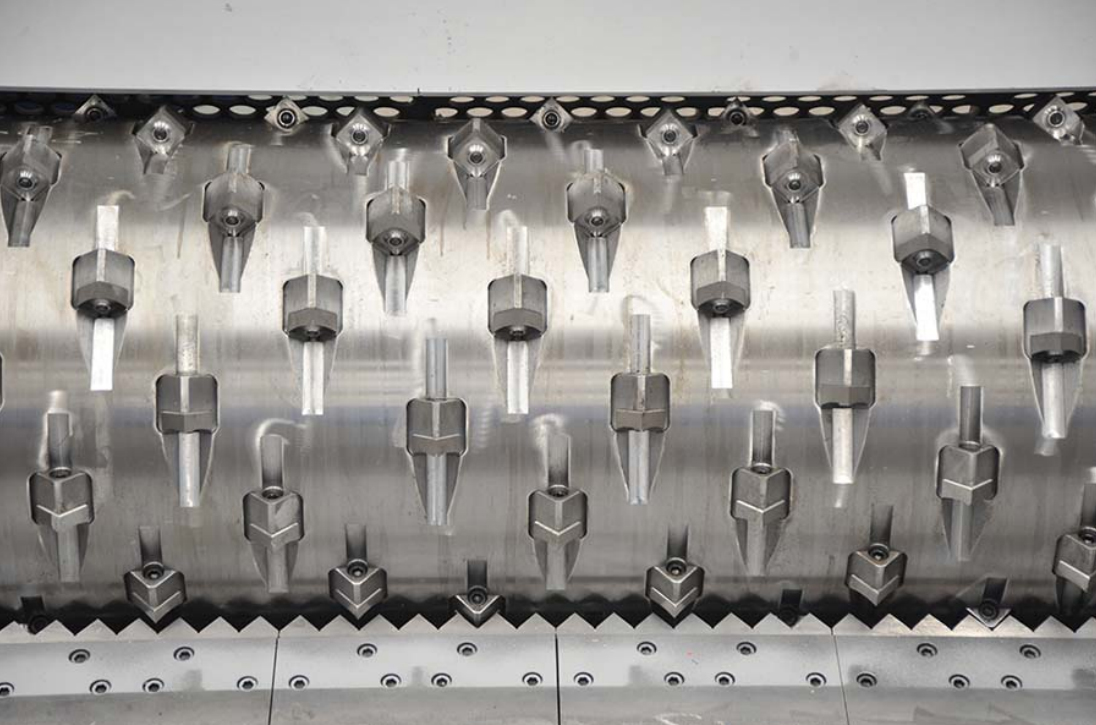

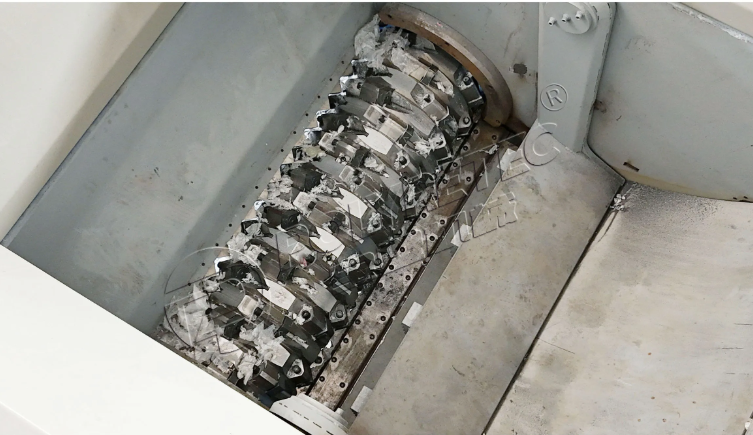

Rotor:
V-shape cutting blades, ensuring maximum cuts per revolution.
Enlarged blades can be turned for dual use and replacement.
Diameter enlarges for torsion and shock resistance.

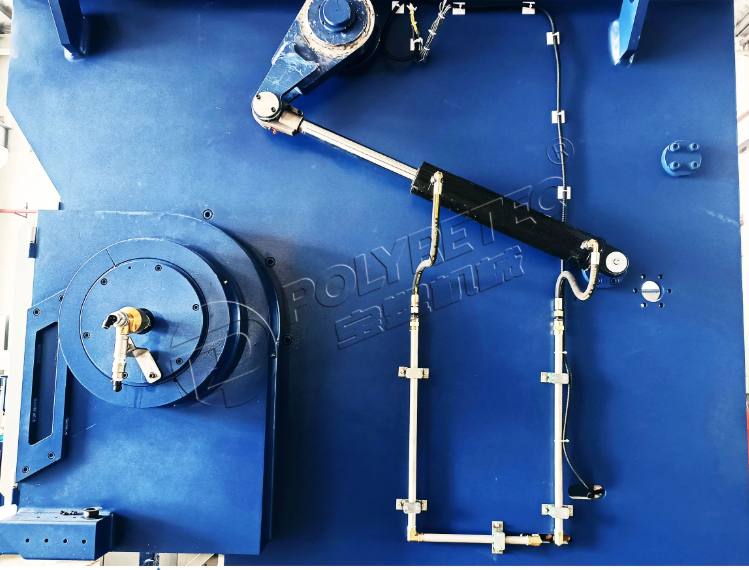

Swing Arm:
Swing arm runs in curve.
Curve hopper allows materials to enter easily.
Works in conjunction with workload and material characteristics.

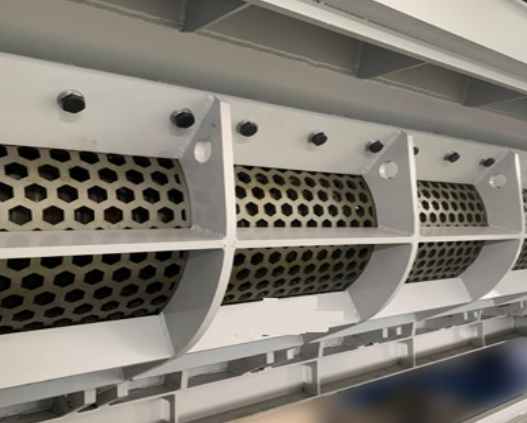

Screen:
Hydraulically actuated screen cradle.
Customizable screen opening size from 40mm to 100mm.
Hex screen and circle screen opening avails for a better size control.

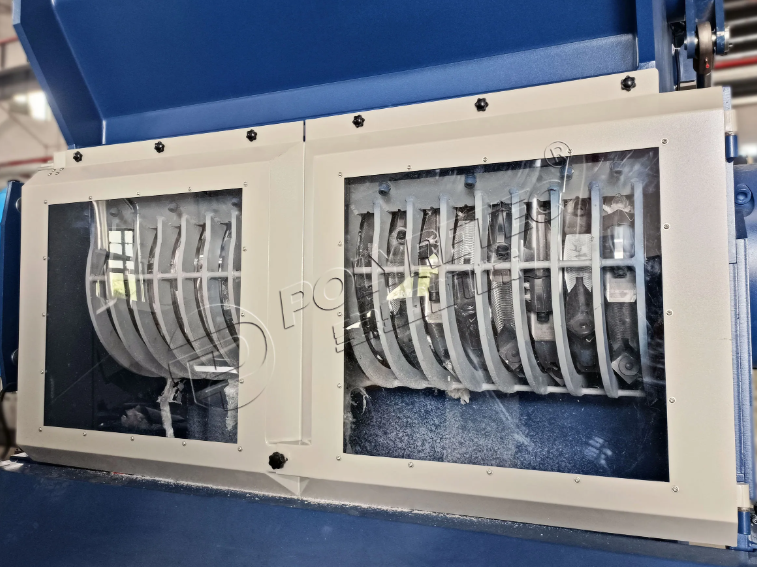

Housing:
Upward-lifted service doors grant access to the front and rear.
All pipelines are well-routed in waste crusher.
Machine body is a thick-walled metal construction.

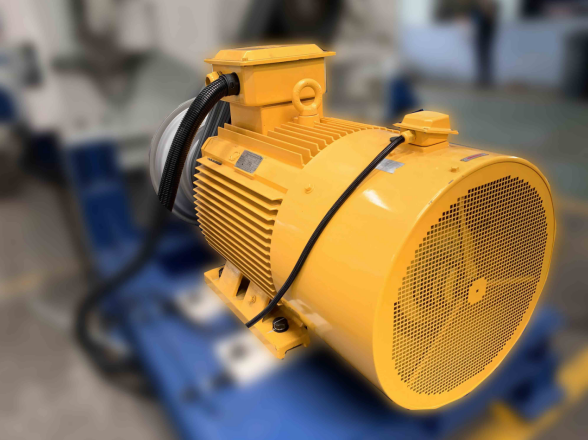

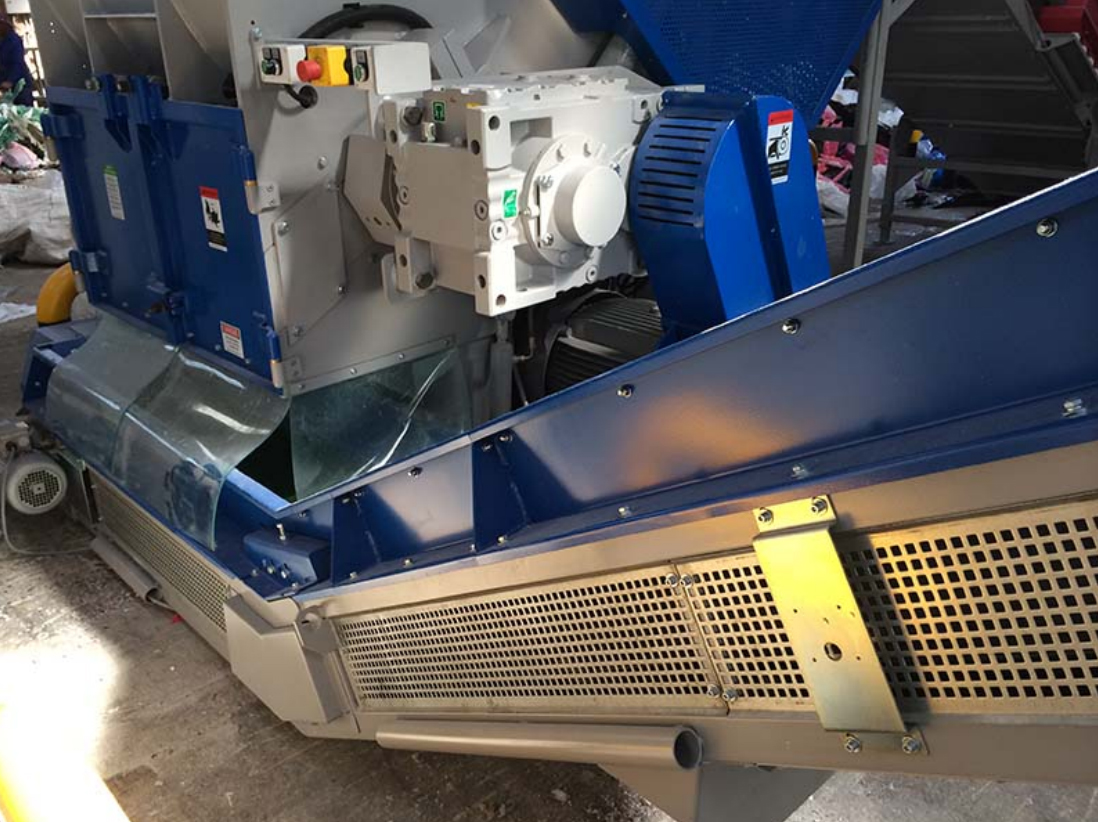

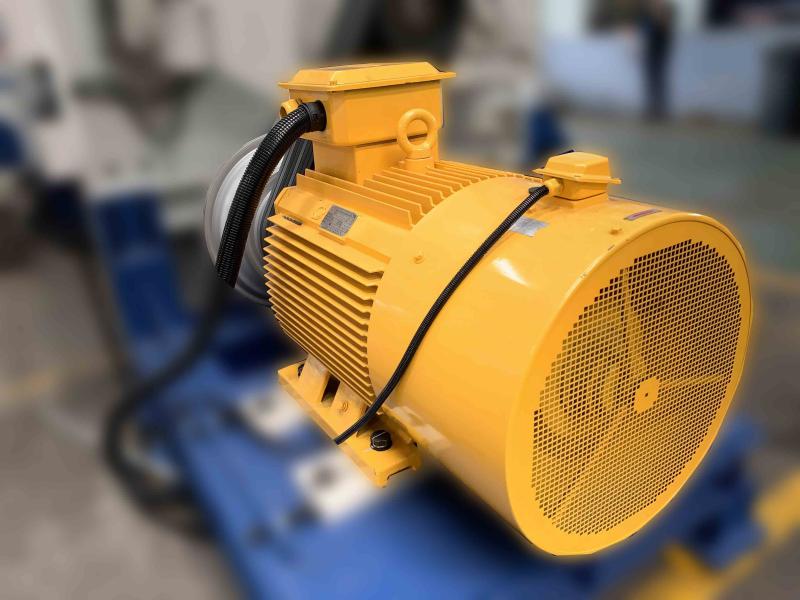

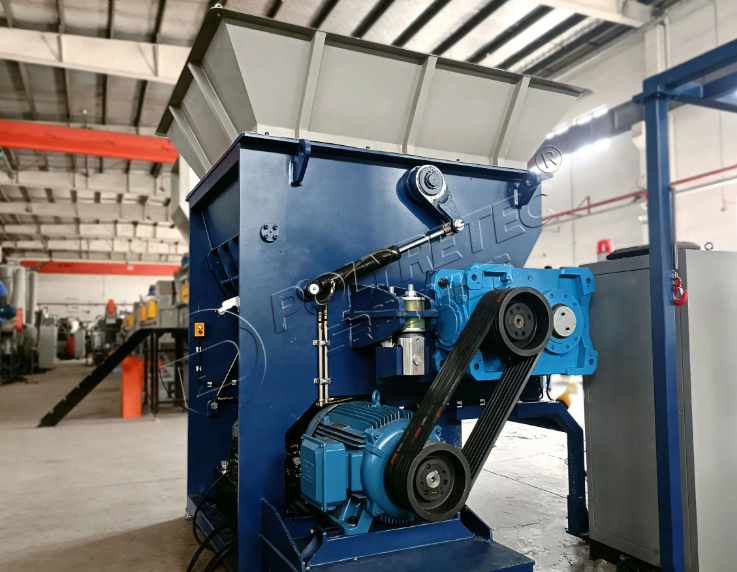

Drive:
High-speed shredding.
In case of overload and shock, a torque-militing clutch disengageas to protect drive unit.
Options of one/dual motors, as well as mechanical/hydraulic/inverter drives.

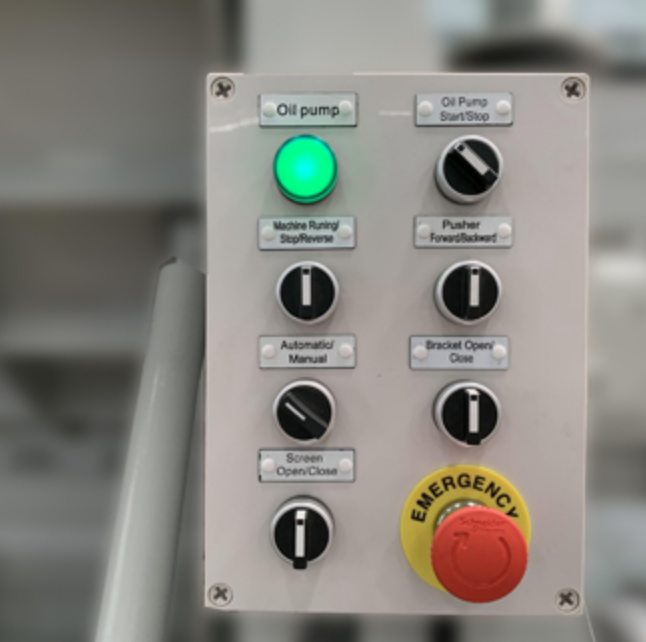

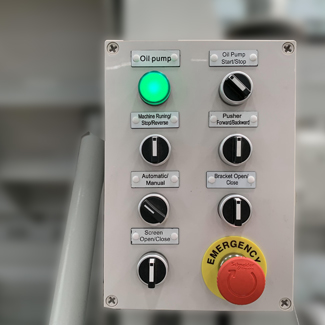

Control System:
Monitors key parameters of waste shredder.
Dynamic load balance for dual drives.
Adds-on: spark detection, dust vaccum, and water-cooling
| Model |
PTSW1200 |
PTSW1600 |
PTSW2000 |
| Dimension(L*W*H)mm |
2230*2560*2370 |
2230*3660*2970 |
2230*3710*2970 |
| Hopper opening(L*H)mm |
1360*1910 |
1360*1910 |
1360*2410 |
| Discharge height(mm) |
460 |
460 |
460 |
| Rotation diameter(mm) |
Φ560 |
Φ560 |
Φ560 |
| Operation length(mm) |
1500 |
1500 |
2000 |
| Rotation speed(RPM) |
80 |
80 |
80 |
| Swing pusher ram(mm) |
420 |
420 |
420 |
| Screen hole size(mm) |
60 |
60 |
60 |
| Rotated blades number |
105 |
136 |
180 |
| Fixed blades number |
6 |
6 |
8 |
| Motor power(kw) |
90 |
110 |
75+75 |
| Hydraulic power(kw) |
5.5 |
5.5 |
7.5 |
| Weight(kg) |
9000 |
11500 |
13000 |
